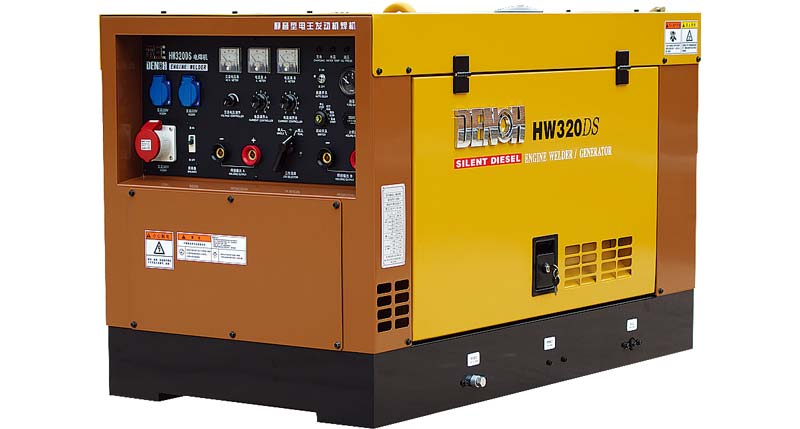

300A柴油靜音發電電焊機 | 300A Diesel silence generator welder

產品優勢 | Product Advantage

* HW320DS發電電焊機由日本工程師參與設計。
* 質量管理嚴謹，符合強制性產品認證(CCC)標準。
* 可提供50Hz 10KVA三相與3.3KW×2單相輔助電源。
* HW320DS-EW engine welding machine by Japanese engineers to participate in the design.
* China compulsory certification (CCC) standards;
* Provide 50 hz 10 kva three-phase and single-phase auxiliary power 3.3 KW x 2.

HW320DS-EW性能參數配置/Specification of HW320DS-EW
類型/Type	無刷/Brushless
驅動方式/Driven	直接耦合/Direct coupling
防護等級/Protection class	IP23
絕緣等級/Insulation class	F
焊接輸出/Descending Output
額定功率/Rated power	8.7 KW
額定電流/Rated current	280 DCA
額定電壓/Rated voltage	31.2 DCV
空載電壓/Idle voltage	75 DCV
暫載率/Rated duty cycle	50%
焊接電流調節范圍/Current range control	45-300 DCA
輔助電輸出/Accessorial Receptacle
額定功率/Rated power	10.0 KW
額定電壓/Rated voltage	380 DCV
輔助電額定電流/Rated current	15.2 A
暫載率/Rated duty cycle	80%
發動機/Engine
型號/Model	久保田/Kubota D905
類型/Type	四沖程三缸/4-stroke, 3-cylinder
排氣量/Displacement	898 CC
額定功率/Rated output power	19 HP
額定轉速/Rated speed	3000 rpm
啟動方式/Starting system	電啟動/Electric
燃料/Fuel	柴油/Diesel
冷卻方式/Cooling system	水冷/Water-cooled
其它/Others
油箱容量/Fuel tank capacity	37 L
外形尺寸/Dimension (L×W×H)	1300×710×803 mm
重量/Net weight	410 Kg
電池/Battery	12V-36AH
